post gt220 01 GIGABYTE GA P55A UD3P Full Benchmark Review

สวัสดีครับ วันนี้ผมก็ขอมานำเสนอบทความรีวิวปิดซีรีย์ P55A ตัวสุดท้ายจากทาง GIGABYTE นะครับ โดยคราวนี้จะเป็นรุ่นน้องสุดในซีรีย์นี้อย่าง GIGABYTE GA-P55A-UD3P จะแตกต่างจาก GIGABYTE GA-P55-UD3P รุ่นเก่าอย่างไรบ้าง ก่อนอื่นเราไปชมสเป็คกันก่อนเลยดีกว่าครับ

.

Specifications

CPU
  1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor in the LGA1156 package
    (Go to GIGABYTE’s website for the latest CPU support list.)
  2. L3 cache varies with CPU
Chipset
  1. Intel® P55 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR3 2200/1600/1333/1600/1066/800 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

Go to GIGABYTE’s website for the latest memory support list.

Audio
  1. Realtek ALC889 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby® Home Theater
  5. Support for S/PDIF In/Out
  6. Support for CD In
LAN
  1. 1 x RTL8111D chip (10/100/1000 Mbit)
Expansion Slots
  1. *1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
  2. *1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 2 x PCI Express x1 slots
  4. 3 x PCI slots
Multi-Graphics Technology
  1. Support for ATI CrossFireX™ technology
Storage Interface Chipset:

  1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Marvell 9128 chip:

  1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA2_7) supporting up to 2 SATA 6Gb/s devices
  2. Support for SATA RAID 0

JMB362 SATA2 chip:

  1. 2 x eSATA 3Gb/s connectors on the back panel supporting up to 2 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8213 chip:

  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8720 chip:

  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Chipset:

  1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

NEC chip:

  1. Up to 2 USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 6 x SATA 3Gb/s connectors
  6. 2 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 2 x system fan headers
  9. 1 x power fan header
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x CD In connector
  13. 1 x S/PDIF In header
  14. 1 x S/PDIF Out header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x serial port header
  17. 1 x parallel port header
  18. 1 x clearing CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard or PS/2 mouse port
  2. 1 x coaxial S/PDIF Out connector
  3. 1 x optical S/PDIF Out connector
  4. 8 x USB 2.0/1.1 ports
  5. 2 x USB 3.0 ports
  6. 2 x eSATA 3Gb/s ports
  7. 1 x RJ-45 port
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line)
I/O Controller
  1. iTE IT8720 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control
BIOS
  1. 2 x 16 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune
  8. Support for Dynamic Energy Saver™ 2
  9. Support for Smart TPM
  10. Support for Smart 6™
  11. Support for Auto Green
  12. Support for eXtreme Hard Drive
  13. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft® Windows 7/Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Note

  1. * When SATA3 / USB 3.0 (Marvell 9128 /NEC USB 3.0 Controllers) work at turbo mode, 1st PCIE x16 will work at x8 speed
  2. TPM function is optional due to different regional policy
Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.

Packaging&Bundles

ga gt220 01 GIGABYTE GA P55A UD3P Full Benchmark Review

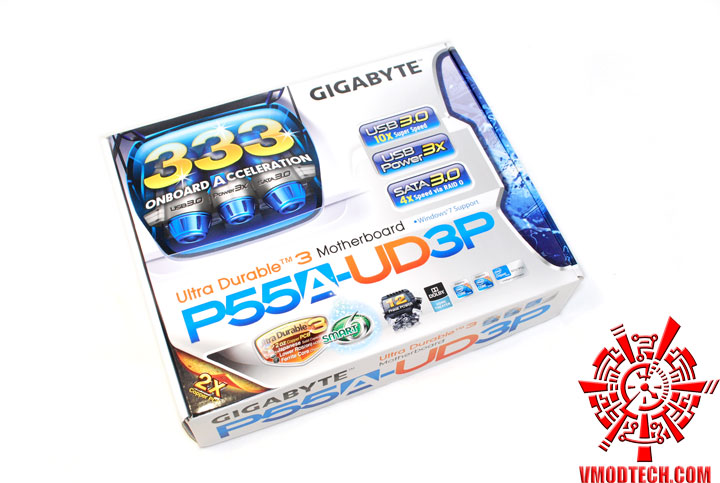

หน้าตากล่องสวยงามตามสไตล์ GIGABYTE โดดเด่นกันด้วยเลขตอง3 พระเอกของรุ่นนี้เหมือนรุ่นพี่เช่นเดิม

ga gt220 02 GIGABYTE GA P55A UD3P Full Benchmark Review

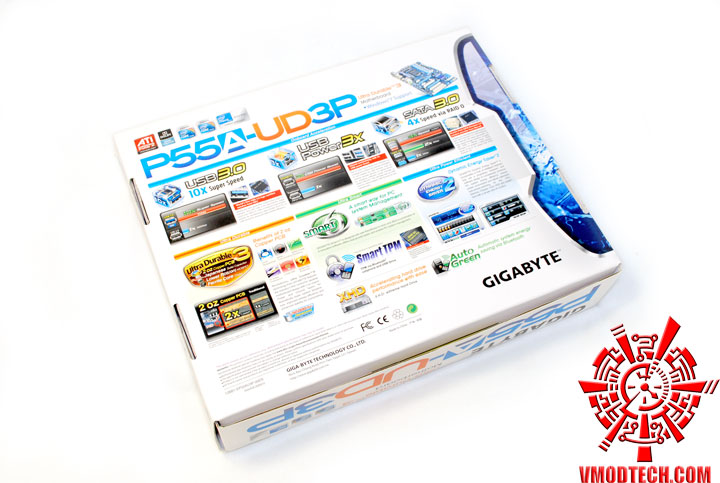

ด้านหลังกล่องก็มีการบรรยาย Feature ต่างๆไว้เพียบเช่นเคย

ga gt220 03 GIGABYTE GA P55A UD3P Full Benchmark Review

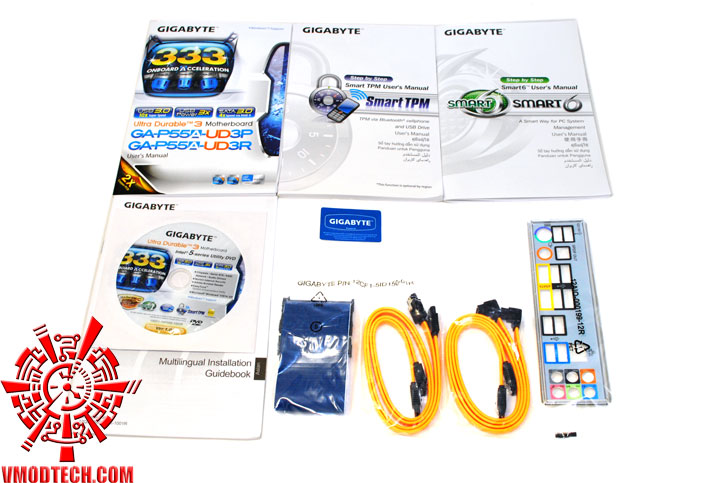

อุปกรณ์ต่างๆที่แถมมาภายในกล่องไม่มี Bridge SLI นะครับ เพราะว่าบอร์ดรุ่นนี้ไม่ Supported
