NZXT HADES CHASSIS Review

/ บทความโดย: Venom-Crusher , 24/06/2010 00:01, 8,514 views / view in EnglishEN
«»
Share

nzxt hades 1 NZXT HADES CHASSIS Review

สวัสดีครับ วันนี้เรามาชมเคสหน้าตาเท่ห์ๆอีกหนึ่งตัวจาก NZXT กันดีกว่านะครับ ซึ่งคราวนี้จะมากันในชื่อรุ่น HADES ที่ออกเสียงแบบกรีก-โรมันว่า เฮดีส ซึ่งก็เป็นชื่อของจ้าวแห่งนรก ในเทพนิยายของกรีก-โรมันนั่นเองครับ ก่อนอื่นไปชมสเป็คต่างๆของตัวเคสจากทางผู้ผลิตกันก่อนเลยนะครับ

.

Features

  • Expansion galore: Nine 5.25″ bay setup or Five 5.25″ and Four 3.5″
  • Latest Hardware Support: VGA clearance room for 300mm cards like the ATI 5970
  • CPU Heatsink clearance: 131.5mm w/ 200mm fan, 165mm w/o side fan installed.
  • Dual 200mm intake Large air system: 200mm front fan, dual top 140mm fan, Side 200mm fan, rear 120mm exhaust. NZXT includes the chassis with all fans except for one top 140mm fan
  • Control the flow: Gaming, overclocking, or office work the dual 8W per channel fan control allows control over the dual 200mm fans that spin up to 150 CFM each
  • Monitor your system: A three C/F temperature display at front panel allows the user to see temperatures inside the chassis even with the door closed. A slant on the door allows for easier viewing from above.
  • Punched side panel: Besides aesthetics, the side mesh and extrusion allows for even greater and ease of wire management on the right side panel
  • Meshed front: 5.25″ meshed bays, meshed door, and meshed bottom panel allows for air to flow into the system with ease.
  • Wire Routing: Motherboard punched holes allows for quick CPU bracket removable and optimal wire routing.
  • NZXT Solid State bracket allows for two SSD drives to be installed
  • Pre-drilled water cooling holes on the backplate
  • Front mounted 2 USB, Audio, and E-SATA ports
  • Mounting holes for dual radiator at the top
  • Removable filter at the bottom PSU

9 Bay Black Midtower

Introducing the Hades, a chassis that provides an array of advanced features for the most demanding PC enthusiast. Airflow is optimized with 5 fans(dual 200mm intake, 200 mm front fan, dual top 140mm fans, side 200mm fan, and rear 120mm exhaust). NZXT includes all the fans with the exception of the top 140mm and also provides a dual fan 8W per channel controller giving enthusiasts freedom to manage intake and exhaust airflow. A three temperature display on the front panel allows the user to see the temperature inside the chassis even when the door is closed. Additionally, the meshed 5.25″ bays, door, and bottom panel allows for air to naturally flow into the system with ease.

Hades also boasts premium expandability with up to nine 5.25″ bay setup or five 5.25″ and four 3.5.” It also features VGA clearance room for 300mm cards like the new ATI 5970. The punched side panel and motherboard tray with rubber grommets on the motherboard routing holes enables advanced wire management and quick CPU bracket removal. Additional advanced features include a solid state bracket allowing for two SSD drives, pre-drilled water cooling holes on the backplate, mounting holes for a dual radiator at the top, and a removable filter at the bottom PSU.

MODEL Hades Series
CASE TYPE Mid Tower Steel
FRONT PANEL MATERIAL PLASTIC
DIMENSIONS (W x H x D) 200 X 430 X 501 mm / 7.87″ x 16.9″ x 19.7″
COOLING SYSTEM FRONT, 1 X 200mm red LED (included)
REAR, 1 X 120mm (included)

SIDE, 1 x 200mm (included)

TOP, 2 X 120/140mm (1 include 140mm)

DRIVE BAYS 9 DRIVE BAYS
9 EXTERNAL 5.25″ DRIVE BAYS
4 INTERNAL 3.5″ DRIVE MOUNTS
Screwless Rail Design
MATERIAL(S) Steel with black finish
EXPANSION SLOTS 7
POWER SUPPLY 500 WATT PS2 ATX 12V 2.0 ( OPTIONAL )
WEIGHT 6.95 KGS (W/O Power)
MOTHERBOARD SUPPORT MOTHERBOARDS: ATX, MICRO-ATX, BABY AT

.

More Informations >>Click<<

ชมสเป็คกันครบแล้วก็ไปชมหน้าตากันต่อเลยนะครับ

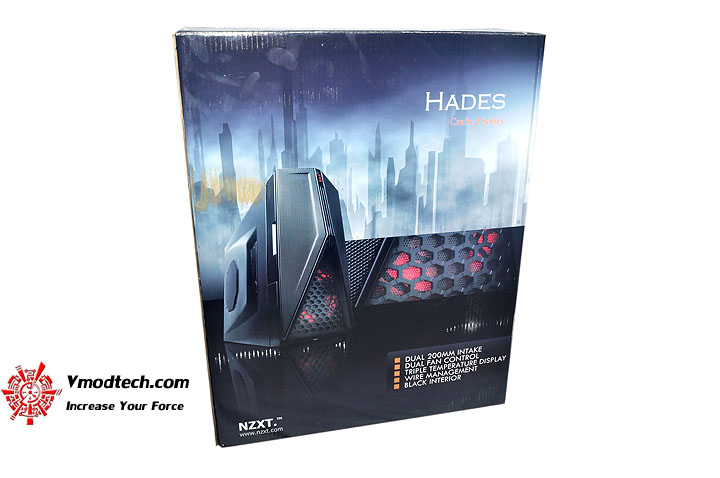

dsc 0096 NZXT HADES CHASSIS Review

กล่องบรรจุภัณฑ์ พิมพ์ 4สีออฟเซตสวยงาม

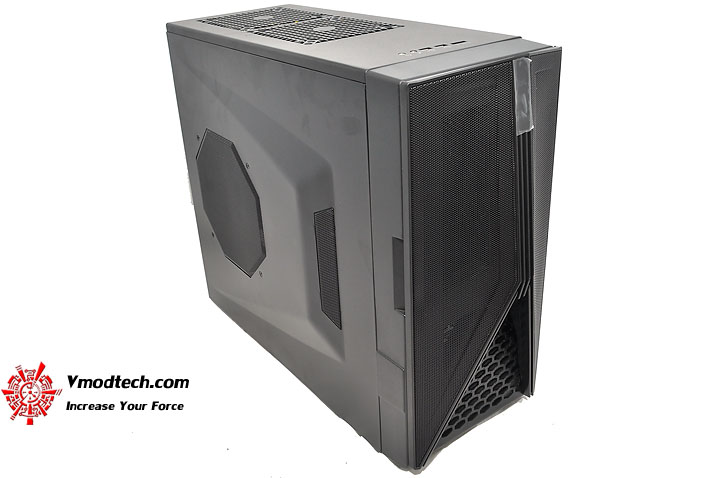

dsc 0116 NZXT HADES CHASSIS Review

แกะกล่องออกมา ก็ถือว่าเป็นเคสขนาด Mid Tower ที่มีหน้าตาดุดันมิใช่เล่น

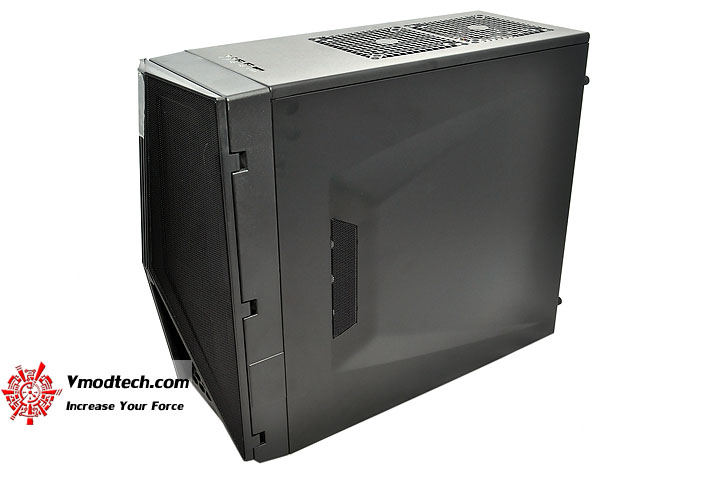

dsc 0123 NZXT HADES CHASSIS Review

หมุนมองอีกข้างฝาด้านนี้ก็ยังมีดีไซด์สวยงามไม่แพ้อีกด้านนึง
