MSI Z68A-GD80 B3 : Master of Performance & Stabilities

/ บทความโดย: Venom-Crusher , 16/08/2011 00:47, 1,489 views / view in EnglishEN
«»
Share

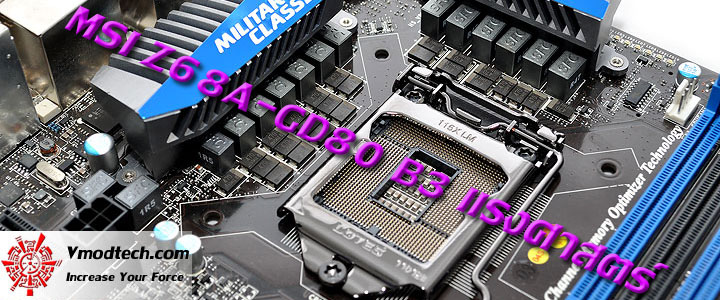

z68agd80b3 1 MSI Z68A GD80 B3 : Master of Performance & Stabilities

สวัสดีครับ สำหรับในวันนี้ ผมก็มีมาเธอร์บอร์ดจาก MSI มานำเสนอกันอีกหนึ่งรุ่นนะครับนั่นก็คือรุ่น Z68A-GD80 B3 ซึ่งมาเธอร์บอร์ดรุ่นนี้จะมีดีอะไรบ้าง ก่อนอื่นเราไปชมสเป็คต่างๆของซีพียูและมาเธอร์บอร์ดชุดนี้กันก่อนดีกว่าครับ

Overview

feature 20101228114452 MSI Z68A GD80 B3 : Master of Performance & Stabilities

Military Class II

The perfect trinity of quality, stability and efficiency all exist at one mainboard to meet end user expectations. The MSI Military Class II series products provide the long lifespan, unparalleled quality, extreme performance and ultimate efficiency.

military 02 MSI Z68A GD80 B3 : Master of Performance & Stabilities
Hi-c CAP
8X Lifespan than solid Capacitor!!
Insisting on the best stability, MSI utilizes Hi-c CAPs on Military Class series.  Made of the rare element Tantalum, often used on space shuttles and satellites, which sustains very high temperatures and shows an amazingly high electrical conductivity.
sfc MSI Z68A GD80 B3 : Master of Performance & Stabilities

SFC
SFC(Super Ferrite Choke).The super Ferrite Chokes use a Ferrite core that is Super-Permeable. Compare with traditional choke, the Super Ferrite Chokes run at a 35 degree Celsius lower temperature. The lower working temperature will enhance mainboard stability.

military 04 MSI Z68A GD80 B3 : Master of Performance & Stabilities

Solid CAP
10 years long lifespan
For providing the highest quality products, we built-in Solid CAP in the entire Military Class series. This not only makes bursting capacitors a non-issue but also ensures a dramatically extended lifetime and ultra-low ESR.

feature 20110502134659 MSI Z68A GD80 B3 : Master of Performance & Stabilities

OC Genie II (Z68)

Just press the OC Genie button or enable OC Genie II function in BIOS menu, the CPU, memory, iGPU and HDD performance will be highly improved. Whether users want to watch a high bit-rate HD movie or go online gaming, both can be enjoyed with image performance that is smoother and lag-free!

ocg z68 MSI Z68A GD80 B3 : Master of Performance & Stabilities

feature 20110502140345 MSI Z68A GD80 B3 : Master of Performance & Stabilities

Virtu Switchable Graphics

Based on LucidLogix Virtu technology, MSI Z68 mainboard series firstly provides the most expectable feature for desktop platform - switchable graphics, which allows users to enjoy both graphics power of integrated GPU and discrete GPU. It will switch to integrated GPU for HD movie playback, video transcoding and general applications to save system energy, or release full power for hardcore 3D gaming by switching to discrete GPU automatically.

feature 20110217095737 MSI Z68A GD80 B3 : Master of Performance & Stabilities

B3 Stepping Ready

To fix Intel’s 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its P67/H67 mainboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI P67/H67 mainboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67 mainboard.

feature 20101228165036 MSI Z68A GD80 B3 : Master of Performance & Stabilities

Click BIOS

cbios 1 MSI Z68A GD80 B3 : Master of Performance & Stabilities• Universal Extensible Firmware Interface
• User-friendly mouse-controlled BIOS menu
• Pre-OS Applications(HDD Backup, Game, Memory test)
• 15 languages support

feature 20101228155412 MSI Z68A GD80 B3 : Master of Performance & Stabilities

THX TruStudio PRO

THX is a trade mark of a high-end audio/visual reproduction standard for movies, home theaters, computer speakers and other audio devices. THX Certified Audio products are designed to let users experience movies & videos as live show. The true sound effect can make high definition video more powerful.

Features
- A high-fidelity sound reproduction standard
- Accurately reproduce the fullest audio experience of movie, music and game soundtracks

feature 20101211120550 MSI Z68A GD80 B3 : Master of Performance & Stabilities

SATA 6Gb/s

sata6 02 MSI Z68A GD80 B3 : Master of Performance & StabilitiesSATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance.

Features
- 2X Faster Than SATA 3Gb/s
- Up to 6Gb/s Data Transfer Bandwidth
- Unleash True Performance of New HDDs/SSDs

feature 20101228132922 MSI Z68A GD80 B3 : Master of Performance & Stabilities

Super Charger

Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected.  The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.

Features
- Instant MB info monitor
- Green Power: CPU Phase, system fan speed controlled with max power saving
- Smart Mode: 4 instant OC modes

feature 20101211114159 MSI Z68A GD80 B3 : Master of Performance & Stabilities

M-Flash

Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.

Features
- Backup/Restore Your BIOS to/from Any USB Flash Disk
- Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
- Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process

feature 20101211114429 MSI Z68A GD80 B3 : Master of Performance & Stabilities

APS (Active Phase Switching)

Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSI’s mainboards. The underlying idea is to switch aps f MSI Z68A GD80 B3 : Master of Performance & Stabilitiesoff the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor’s loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI’s own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage.

feature 20101211121239 MSI Z68A GD80 B3 : Master of Performance & Stabilities

USB 3.0

Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0’s 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. MSI also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient.

Features
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices

feature 20110412143859 MSI Z68A GD80 B3 : Master of Performance & Stabilities

HDMI v1.4

HDMI (High-Definition Multimedia Interface) is new generation fully digital video/audio interface which can transfer 1080p High-Definition video and Audio output in single compact connector. Supporting HDCP copy protection such as Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.

Features
- Next-Gen Multimedia Interface
- Deliver Full HD Video & Audio output In Only One Cable
(HDMI 1.4 is only supported with 2nd Intel®Generation CoreTM Processors. Pentium and Celeron Processors support HDMI 1.3)

feature 20101228160658 MSI Z68A GD80 B3 : Master of Performance & Stabilities

Winki 3

Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast  booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It’s the most practical way to be online in the shortest time.

Features
- User friendly & totally free applications
- Power on to run applications in 25 seconds
- Multi-language interface support

feature 20110112183808 MSI Z68A GD80 B3 : Master of Performance & Stabilities

Live Update 5

live 200 MSI Z68A GD80 B3 : Master of Performance & StabilitiesMSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.

Features
- Automatically Detect the BIOS/Driver/VGA/Utility Update
- Support Microsoft Windows 98SE/ME/2000/XP/Vista/7 32Bit

feature 20110221164906 MSI Z68A GD80 B3 : Master of Performance & Stabilities

NVIDIA SLI

SLI technology allows using multiple Nvidia graphics cards in a single computer system with a mainboard equipped with an nForce SLI MCP. Users need an a mainboard with two PCI-Express 16x graphics slots and two matching GeForce graphics cards which are “SLI Ready”. Most NVIDIA’s PCI-Express graphics cards starting from the 6600 GPU can enjoy the benefits of SLI.

feature 20110504141427 MSI Z68A GD80 B3 : Master of Performance & Stabilities

AMD CrossFireX

AMD CrossFireX™ is the ultimate multi-GPU performance gaming platform. Enabling game-dominatig power, AMD CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFireX technology allows you to expand your system’s graphics capabilities. It allows you the ability to scale your system’s graphics horsepower as you need it, supporting up to four AMD Radeon™ HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFireX gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience.

feature 20101211130808 MSI Z68A GD80 B3 : Master of Performance & Stabilities

DrMOS

In order to provide customers stable and high quality products, starting from P45 series mainboards, MSI is leading the industry to introduce the world’s most advanced power supply component, DrMOS (Driver-MOSFET), which integrates Driver IC, Top MOSFET and Bottom MOSFET into one chip. Except for its outstanding performance in power saving, DrMOS possesses switch frequency which is 400% faster than traditional MOSFET drmos 02 MSI Z68A GD80 B3 : Master of Performance & Stabilitiesand has great improvement in stabilizing power supply and voltage control. Even under heavy loading and overclocking conditions, DrMOS can still provide the most stable and efficient power supply and quality.

feature 20101228160356 MSI Z68A GD80 B3 : Master of Performance & Stabilities

Instant OC

• Instant MB info monitor
• Intelligently auto set clock/voltage of CPU and memory
• Smart Mode: 4 instant OC modes

feature 20101227184126 MSI Z68A GD80 B3 : Master of Performance & Stabilities

HTPC Ready

With such diversity of display outputs, you are able to choose and upgrade display devices then build up your own home theater.

Features
- Next-Gen Multimedia Interface
- All digital signal output

feature 20110428143725 MSI Z68A GD80 B3 : Master of Performance & Stabilities

3TB+ Infinity

3TB+ Infinity is not only breaking through the limit of traditional BIOS, but also enhancing the utilization of hard drives efficiently. In addition to supporting the latest 3TB hard drives, MSI 3TB+ Infinity technology can use the 3TB hard drive as boot disk when installing a 64-bit operating system. Compared to competitors, MSI 3TB+ Infinity is an industry-leading technology which substantially presents an advantage of development and application in the future.

Features
- All the latest 3TB hard drivers on the market can be supported
- Make the 3TB hard drive as boot disk when installing a 64-bit operating system

Detail Specification

Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesCPU

• Supports Intel® Sandy Bridge processors in LGA1155 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities

Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesChipset

• Intel® Z68 (B3) Chipset

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities

Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesMain Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/2133*(OC) DRAM, 32GB Max
- Supports 1GB/ 2GB/ 4GB/ 8GB DRAM size
- Supports Dual channel mode

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities

Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesSlots

• 3 PCI Express gen2 x16 slots
- PCI_E2 supports up to PCIE x16 speed when PCI_E4 is empty, or PCI_E2 will support up to PCIE x8 speed when PCI_E4 is installed
- PCI_E4 supports up to PCIE x8 speed
- PCI_E5 supports up to PCIE x4 speed (due to the limitation of the chipset, when the PCI_E5 has been installed with a PCIE x4 device, 1 eSATA ports, SATA7 port, 1 onboard front USB 3.0 connectors, 2 PCI slots and 1394 rear IO port will become unavailable.)
• 2 PCIE x1 slots
- When both of the PCIE x1 (PCI_E1, PCI_E3) slots have been installed, only the PCI_E1 slot is available, using one PCIE x1 slot is recommended.• 3 PCI Express gen2 x1 slots
• 2 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesOn-Board SATA

SATAII controller integrated in Intel® Z68 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by Z68 (B3) PCH

SATAIII controller integrated in Intel® Z68 (B3) chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by Z68 (B3) PCH
- SATA1~6 ports support RAID 0/1/5/10 mode by Intel Z68 (B3) PCH

SATAIII / eSATAIII controller integrated in Marvell® 88SE9128 chipset
- Supports one SATA 6Gb/s port & one eSATA 6Gb/s port (back panel)

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesUSB 3.0

• 1 USB 3.0 internal connector by NEC® D720200
• 2 USB 3.0 rear I/O ports by NEC® D720200

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesAudio

• Chipset integrated by Realtek® ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesLAN

• Supports two PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesIEEE1394 / FireWire

VIA® VT6308P chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesInternal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- 6-pin ATX 12V VGA connector
- CPU x 1 / System x 4 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 3 x USB 2.0 connectors
- 1 x USB 3.0 connectors
- 4 x Serial ATAII connectors
- 3 x Serial ATAIII connectors
- 1 x IEEE1394 connector
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector
- 1 x Voltage Check Point
- 1 x Power button
- 1 x Reset button
- 1 x OC Genie button

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesBack Panel I/O Ports

- 1 x Optical SPDIF port
- 1 x PS/2 Mouse/Keyboard port
- 1 x Clear CMOS button
- 1 x IEEE1394 port
- 2 x RJ45 LAN Jacks
- 4 x USB 2.0 ports
- 1 x eSATA port
- 2 x USB 3.0 ports
- 1 x DVI-D port
- 1 x HDMI port
- 1 x 6 in 1 audio jack

MSI Reminds You…
• HDMI, DVI-D ports can only work with CPUs with GPUs core inside.
space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesBIOS

• The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

space silver MSI Z68A GD80 B3 : Master of Performance & Stabilities
Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesDimension

• 30.5cm(L) x 24.4cm(W) ATX Form Factor

Bult ar org MSI Z68A GD80 B3 : Master of Performance & StabilitiesMounting

• 9 mounting holes.

More Informations >>Click<<
