Noctua เปิดตัวพัดลมรุ่นใหม่ล่าสุด NF-A12×25 120mm fan, 140mm adaptor และ NF-P12 Redux line

/ ข่าวโดย: Nongkoo OverclockTeam , 03/05/2018 10:53, 414 views / view in EnglishEN
Share

Noctua เปิดตัวพัดลมรุ่นใหม่ล่าสุด NF-A12×25 120mm fan, 140mm adaptor และ Redux line NF-P12

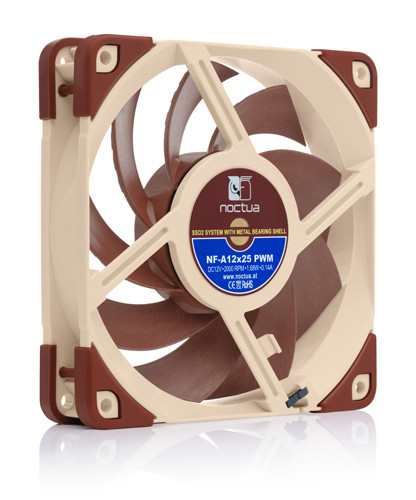

noctua nf a12x25 pwm 4 2 Noctua เปิดตัวพัดลมรุ่นใหม่ล่าสุด NF A12x25 120mm fan, 140mm adaptor และ NF P12 Redux line

Noctua ผู้ผลิตอุปกรณ์ระบายความร้อนในอุปกรณ์พีซีชื่อดังจากประเทศออสเตรียประกาศเปิดตัวพัดลมรุ่นใหม่ล่าสุด NF-A12×25 120mm fan, 140mm และ Redux line NF-P12 สองรุ่น โดยในรุ่น NF-A12×25 จะประกอบด้วย 3รุ่นย่อยก็คือ NF-A12×25 PWM , NF-A12×25 FLX , NF-A12×25 ULN ที่มีขนาดพัดลม 12cm , 14cm ซึ่งในรุ่นนี้จะเป็นการออกแบบใหม่เน้นในด้านวิศวกรรมอากาศพลศาสตร์เพื่อให้ได้ประสิทธิภาพมากยิ่งขึ้นกว่าเดิมในการทำความเย็นที่เงียบเหมาะสำหรับแรงดันไฟฟ้าสถิตย์สูงสุดหรือการไหลเวียนของอากาศสูงสุด ในรุ่น Redux line NF-P12 จะมีด้วยกัน 4รุ่นก็คือรุ่นพัดลมความเร็ว 1700 และ 1300rpm 4-pin PWM versions และรุ่น 1300 และ 900rpm 3-pin ซึ่งเป็นรุ่นคลาสสิก ท่านสามารถเลือกชมพัดลมรุ่นใหม่ๆของทาง NOCTUA ได้ที่ลิงค์ด้านล่างนี้เลยครับ

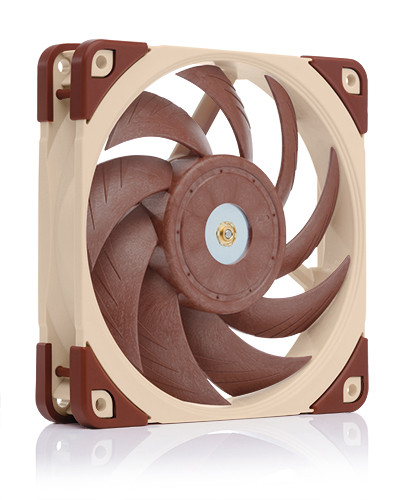

noctua nf a12x25 2 1 Noctua เปิดตัวพัดลมรุ่นใหม่ล่าสุด NF A12x25 120mm fan, 140mm adaptor และ NF P12 Redux line

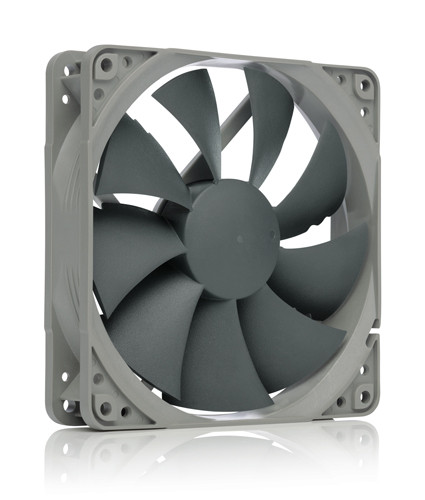

nf p12 redux 1 2 Noctua เปิดตัวพัดลมรุ่นใหม่ล่าสุด NF A12x25 120mm fan, 140mm adaptor และ NF P12 Redux line

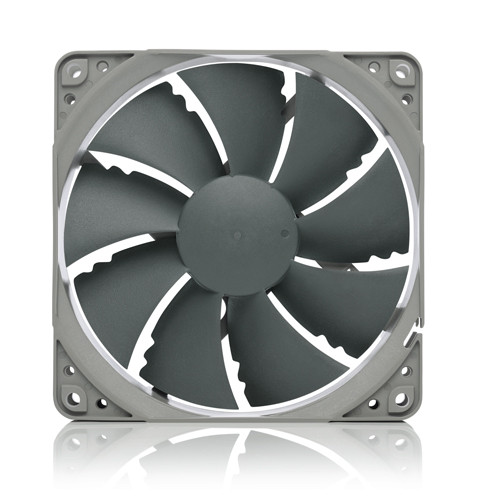

nf p12 redux 3 2 Noctua เปิดตัวพัดลมรุ่นใหม่ล่าสุด NF A12x25 120mm fan, 140mm adaptor และ NF P12 Redux line

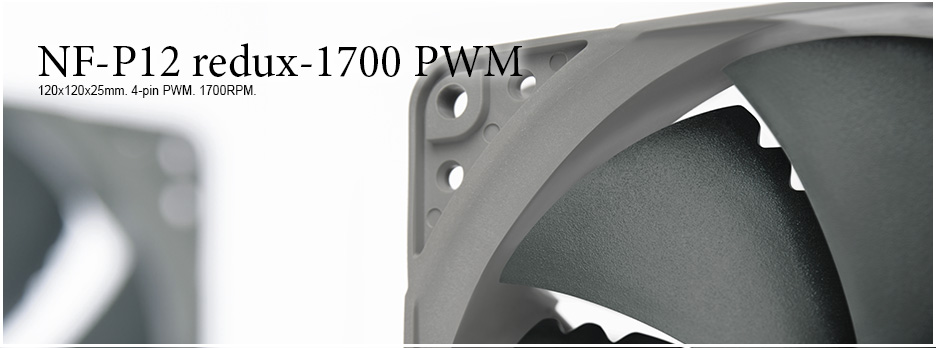

1bef856ebf4f134dba57b9cace995f00 Noctua เปิดตัวพัดลมรุ่นใหม่ล่าสุด NF A12x25 120mm fan, 140mm adaptor และ NF P12 Redux line

Vienna, May 2nd 2018 – Noctua today presented its much-anticipated next-generation 120×25mm A-series fan and the complementary NA-SFMA1 adaptors that allow it to be used on 140mm based watercoolers. The new NF-A12×25 is the first fan made of Noctua’s novel Sterrox® LCP material and integrates the company’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. While the NF-A12×25 becomes the new flagship model in the 120mm range, the classic NF-P12 will be reissued in the streamlined, more affordable redux line.

“The NF-A12×25 is our most advanced fan today. We’ve spent more than 4.5 years developing it and it’s been easily the most thorny, intricate development project we’ve completed so far,” explains Lars Strömbäck (Noctua CTO): “In order to achieve our goal of surpassing our renowned NF-F12 and NF-S12A, we went for a completely different approach and had to use a tip clearance of only 0.5mm, which poses various new difficulties in manufacturing.”

Whereas the award-winning NF-F12 and NF-S12A are specialised solutions that are either optimised for maximum static pressure or maximum airflow, the new NF-A12×25 follows the approach of Noctua’s A-series in being a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. In practice, the NF-A12×25 not only outperforms the renowned NF-F12 on 120mm based watercooling radiators, but combined with the new, optional NA-SFMA1 adaptor frames, it also offers better efficiency than many 140mm fans on 140mm based systems.

One of the cornerstones of the NF-A12×25’s next-generation performance is its record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design helps the NF-A12×25 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame. Manufacturing a fan with such a small tip clearance is extremely delicate and was only made possible by Noctua’s new Sterrox® liquid-crystal polymer (LCP) material, which features extreme tensile strength, an exceptionally low thermal expansion coefficient and excellent dimensional stability.

“We have never put so much research and effort into a single fan so far, both on the level of fine-tuning the aerodynamic construction and on the level of materials and manufacturing,” says Roland Mossig (Noctua CEO): “Many challenges had to be overcome, but now we’re proud with the end result and confident that the NF-A12×25 will become a new benchmark for premium-quality quiet 120mm fans.”

The NF-A12×25 will be available in a 4-pin PWM version for automatic speed control, 3-pin FLX version with Low-Noise Adaptors for three different speed settings as well as a near-silent 3-pin ULN (Ultra-Low-Noise) version. As the NF-A12×25 becomes the new flagship model in Noctua’s 120mm range, the classic NF-P12 moves to the streamlined, more affordable redux line. It will henceforth be available in 1700 and 1300rpm 4-pin PWM versions as well as 1300 and 900rpm 3-pin versions.

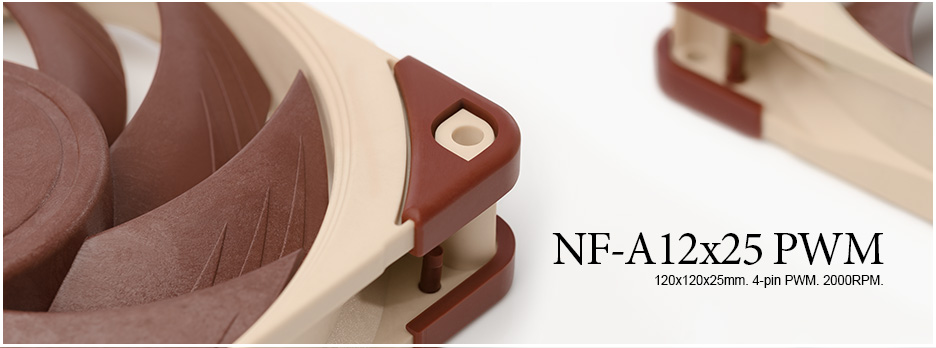

6b33d83ecad4ab519d967c6947a637ec Noctua เปิดตัวพัดลมรุ่นใหม่ล่าสุด NF A12x25 120mm fan, 140mm adaptor และ NF P12 Redux line


Detailed specifications and photos NF-A12×25 PWM: https://noctua.at/en/nf-a12×25-pwm

NF-A12×25 FLX: https://noctua.at/en/nf-a12×25-flx

NF-A12×25 ULN: https://noctua.at/en/nf-a12×25-uln

NF-P12 redux-1700 PWM: https://noctua.at/en/nf-p12-redux-1700-pwm

NF-P12 redux-1300 PWM: https://noctua.at/en/nf-p12-redux-1300-pwm

NF-P12 redux-1300: https://noctua.at/en/nf-p12-redux-1300

NF-P12 redux-900: https://noctua.at/en/nf-p12-redux-900

NA-SFMA1: https://noctua.at/en/na-sfma1

Prices and availability All new models can already be purchased on Amazon and will be available via other retailers shortly: Amazon.com: https://www.amazon.com/s/?field-keywords=noctua+nf-a12×25

Amazon.ca: https://www.amazon.ca/s/?field-keywords=noctua+nf-a12×25

Amazon.co.uk: https://www.amazon.co.uk/s/?field-keywords=noctua+nf-a12×25

Amazon.de: https://www.amazon.de/s/?field-keywords=noctua+nf-a12×25

Amazon.es: https://www.amazon.es/s/?field-keywords=noctua+nf-a12×25

Amazon.fr: https://www.amazon.fr/s/?field-keywords=noctua+nf-a12×25

Amazon.it: https://www.amazon.it/s/?field-keywords=noctua+nf-a12×25
